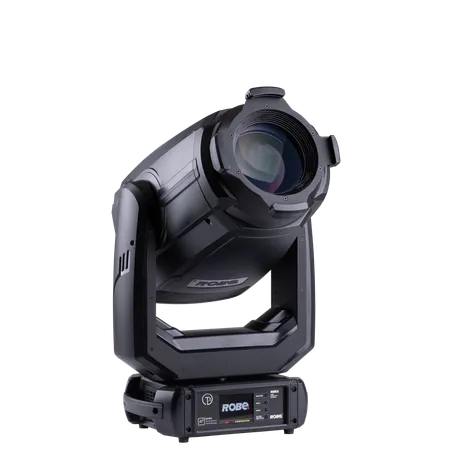

Can a classic be miniaturized without compromising performance? Introducing the T.5 Profile™ — the latest member of the Robe T-Series, offering all the features loved by theatre and broadcast professionals in a more compact form.

In response to high demand for a smaller version of the renowned T1 Profile™, the T.5 Profile™ delivers the same top-tier performance, from advanced controls to its powerful, nuanced output.

Powered by a 350W MSL™ Multi-Spectral light source, the T.5 Profile™ delivers rich, precise colour with an impressive 7.500 lm output and a seamless CCT range of 2.700-8.000K. You’ll also enjoy virtual CRI control (80-95) and linear green content adjustment, giving you total control over every shade.

Beam control is razor-sharp thanks to our patented Plano4 FC™ system, featuring four independent shutter planes and 120-degree module rotation. Each blade offers full curtain ability, providing precision and increased flexibility.

Despite its smaller size, the T.5 is packed with familiar features, including a 5°-55° zoom range for shorter throws, a rotatable and indexable gobo wheel with replaceable gobos, iris, animation wheel, and interchangeable MagFrost™ filters for visual effects. The multi-6-facet prism further enhances dynamic imagery.

Designed for the most noise-sensitive environments, the T.5 incorporates innovative noise-reduction technology, comprehensive fan control, and our Robe AirLOC™ system, which keeps key components cool while reducing surface airflow noise and minimizing the need for frequent optical cleaning.

Technologies like Cpulse™ flicker-free management, EMS™ stabilization, and onboard RCC™ colour calibration ensure flawless performance, whether in the spotlight or on camera.

With the T.5 Profile, you get the power, control, and versatility of the T1, now in a lighter, more agile 20.5 kg design.

T.5 Profile — Experience performance without compromise.

Light source

MSL™ 350W Multi-Spectral LED engine (Patented)

Light output

up to 7.500 lm

Zoom range

5° - 55°

Effects

CMY/RGB or RGBAL, Rotating gobo wheel, Prism , Two frosts, motorised focus and zoom, Pre-programmed random strobe & pulse effects ,Iris ,Full curtain framing shutters, Animation wheel

Innovations

GDTF – General Device Type Format

The General Device Type Format creates a unified definition for exchange of data for the operation of intelligent luminaries, such as moving lights. The file format is human readable and developed using open source formats.

REAP™ – Robe Ethernet Access Portal

The Robe Ethernet Access Portal allows to access internal data from a networked fixture, viewed as a web page, addressable via the fixtures network IP.

Epass™

Robe lighting’s Epass™ provides Ethernet in/out connections with a pass-through switch that sustains Ethernet integrity when the fixture has no power to automatically maintain network connectivity.

Cpulse™ – Pulse Width Modulation Control

Cpulse™ is a PWM (Pulse Width Modulation) control system for luminaires that allows you to select and fine-tune the LED driving frequency, from either the fixture's onboard display or remotely via DMX. By frequency manipulation in a range from 800 Hz to 25 kH, you ensure no flicker will be visible on any camera system including the latest HD & UHD models, ready for 8K and 16K. This means our fixtures can be used with all the latest cameras types for TV, video and film applications.

L3™ – Low Light Linearity System

The L3™ Low Light Linearity System produces imperceptible, ultra-smooth fades to black.

DataSwatch™ – inbuilt virtual colour library

The DataSwatch™ inbuilt virtual colour library for Robe LED fixtures provides consistent colour rendering with commonly matched filter ranges, allowing for rapid and accurate programming.

MLP™ – Multi-level prisms

MLP™ - Patented Multi-Level Prisms allow multiple rotating prisms to be "stacked" while retaining individual position, speed and direction of rotation control. With variable shape and size it creates unlimited dynamic, multi-level flower and beam effects, bringing a whole new collection of eye-popping creativity.

MagFrost™

There is no need to be stuck with frosts supplied with the fixture! Robe’s MagFrost™ magnetic paddle system provides you with quickly exchangeable frosts, enabling you to select those most suitable for your production. 0.5°, 1°, 3.5°, 5°, 10°, 20° and 30° frosts are available.

EMS™ – Electronic Motion Stabiliser

The Robe EMS™ (Electronic Motion Stabiliser) system is a technology for precise Pan and Tilt movements, which reduces vibrations from audio outputs, truss movement and sprung or suspended floors.

Technical Specification

Expand AllDownload PDFCollapse All

Source

Light source type: MSL™ 350W Multi-Spectral LED engine (Patented)

LED life expectancy: min. 40.000 hours

Colour rendition: CRI: 95, CRI R9: 91, TM30-18 Rf: 93, TM30-18 Rg: 103, TLCI: 94

Typical lumen maintenance: L70/B50 @ 40.000 hours

Light source warranty: 3 years or 20.000 hours

Optical system

Dynamic Effects and Features

Factory calibrated whites and colours via the new RCC™ (Robe Colour Calibration) system, automatic or on-call

self-re-calibration of the LED engine without the use of any external tool (Patent pending)

Colour mixing: CMY/RGB or RGBAL

White light: Variable CCT 2.700K - 8.000K

DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K,

4.200K, 5.600K and 8.000K

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to

4200K (red shift and thermal delay)

+ - Green correction function

Adjustable CRI from 80 to 95+

MCE™ - Split and multicoloured effects created directly from the LED engine (Patented)

Full curtain framing shutters: Patented Plano4 FC™ framing shutters module with 4 individually positionable

blades plus rotation of the complete framing system +-60°

Rotating gobo wheel: 7 rotating, indexable and replaceable breakup and aerial gobos + open, all gobos

specially selected for theatrical and TV productions

Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both

directions at variable speed

Prism: 6-facet 8° prism rotating in both directions at variable speed

Iris: Motorized, stepless, pulse effects up to 3 Hz

MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very

light 1° for instant softening of the projected gobo or framing shutters, and a medium 5° for even wash, both

specifically selected for theatre and TV use

HSL™ - Hot-Spot Lens for LED profiles: from flat field to 6:1 hot-spot (optional)

Motorised zoom and focus

Electronic strobe effect with variable speed up to 20 Hz

Pre-programmed random strobe & pulse effects

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Extremely quiet operation suitable for all types of production in Theatre and TV

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the

optical elements. This increases the overall performance, light quality and time between routine cleaning and

maintenance.

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning,

operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to

100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio - on request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to

automatically maintain network connectivity - on request

DMX Protocol modes: 3

Control channels: 49, 33, 53

Pan & Tilt resolution: 16 bit

Colour mixing: 8 or 16 bit (internal 18 bit)

Variable CCT: 8 bit

Adjustable CRI: 8 bit

+ - Green correction: 8 bit

Framing shutters module movement & rotation: 8 bit

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Animation wheel: 8 bit

Prism indexing & rotation: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Movement

Rotating gobos

Effect wheel

Framing shutters system

Thermal specification

Noise Levels

Electrical specification and connections

Approvals

Mechanical specification

Rigging

Included items

Optional accessories

Top hat

Gel frame

Doughty Trigger Clamp: 17030386

Frost 0.5° (exchange) assembled: 10981149

Frost 1° (exchange) assembled: 10981150

Frost 5° (exchange) assembled: 10981151

Frost 10° (exchange) assembled: 10981152

Frost 20° (exchange) assembled: 10981153

Frost 30° (exchange) assembled: 10981154

Safety wire 36 kg: 99011963

Single Top Loader Case: 10120368

Dual Top Loader Case: 10120369

Quad Top Loader Case: 10120370

Foam Shell: 20020506
