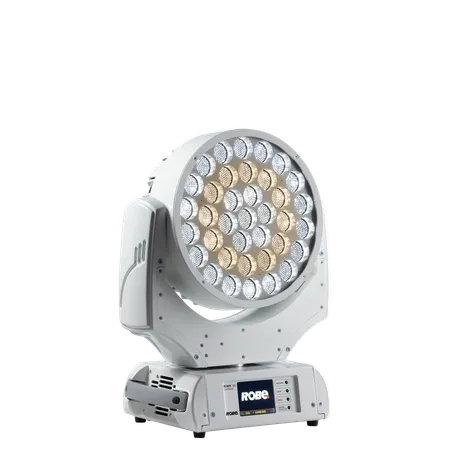

DayLight, WarmWhite or SmartWhite combinations of LEDs are arranged in 3 concentric rings for providing comprehensive and perfectly even wash coverage, ideal for car shows, theaters and thank to flicker free LED operation also for TV studios. Fast 15 – 60 degree motorized zoom, speedy pan and tilt movement and powerful fast strobing with pre-programmed strobe effects of all LEDs or per each individual ring can turn this wash unit into very effective blinding tool. Available only in a white colour, wired DMX version. (Black housing on request)

Light source

37 x white LEDs, 6.300 - 2.800 K

Light output

2.430 (WW), 3.550 (CW) lux @ 5 m

Zoom range

15° - 60°

Effects

3 LED rings control

Technical Specification

Expand AllDownload PDFCollapse All

Source

Light source: 37 LED multichips

Led Life Expectancy: minimum 60.000 hours

Typical Lumen Maintenance: 70% @ 60.000 hours

Optical system and effects

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2

Optional wireless version available : CRMX™ technology from Lumen Radio

Control channels: 24, 16, 12, 10, 24

5 DMX protocol modes

3-editable programs, each up to 100 steps

Stand-alone operation

QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC

Ethernet port: Art-Net protocol, ready for ACN

Data in/out: Locking 3-pin & 5-pin XLR

Built-in analyser for easy fault finding

Thermal specification

Movement

Electrical specification

Mechanical specification

Rigging
