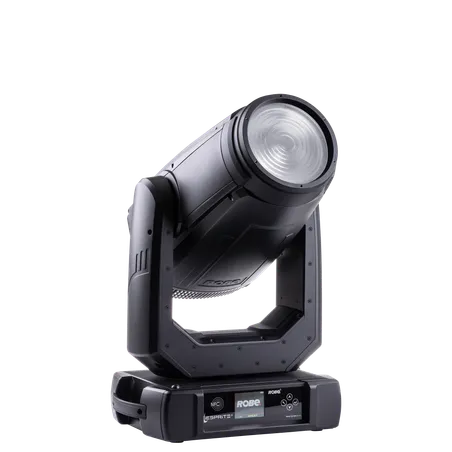

iESPRITE® Fresnel
iESPRITE® Fresnel
Designed to complement our outdoor iESPRITE® Profile, the iESPRITE® Fresnel is engineered for uncompromising performance and hassle-free maintenance, delivering beautifully soft Fresnel style beams in any weather or atmospheric condition.
iSE-TE™ 650W White LED TRANSFERABLE ENGINE
24.400 lm (integrating sphere), 19.506 lm (goniophotometer)
6° - 62°
Internal barndoor system with +/- 90° rotation, Cpulse™ - Flicker Free Management, L3™ dimming system for ultra-smooth fade to black, RotaScrim
The TE™ technology addresses the problem of performance longevity of ageing LEDs by making the exchange of the engine a simple procedure that can be carried out in just a few minutes. But transferable means so much more than replaceable! Different sources can be fitted to one fixture depending on task. Every TE™ engine has its own, unique memory with all engine data of its usage.
To maintain consistently high lumen output, even with the rigours of outdoor performance, water, dirt, dust, haze, and smoke are repelled from the front lens with our unique parCoat™ hydrophobic, oleophobic resistant coating.
By introducing our unique, patented 6:1 ratio hot-spot lens, we alter the field characteristics to create a centre-weighted, peaked beam. By adding a frost filter, you can now effortlessly achieve silky-smooth overlapping washes!
Edge Colour Correction sets Robe wash moving heads aside from other fixtures by providing the ability to shift the edge of the beam to either the red or blue end. This feature allows more or less definition of the internal barndoors cut, as you alter the beam.
Traditional Fresnel lenses used outdoors, with their characteristic annular ridge design, are prone to collecting unwanted debris, which can obstruct their beam. To ensure consistently high lumen output despite the challenges of outdoor conditions like water, dirt, dust, haze and smoke, we have developed the patented F2L™ lens. This innovative design encloses the raised ridges of the concentric annular sections within the fixture to maintain traditional Fresnel beam qualities, while the smooth outer surface prevents debris build-up.
The Robe COM application is an app based on NFC (Near Field Communication). It can be used to access to fixture’s settings of our NFC-based navigation display systems as well as reading out data of our TE™ Transferable Engines.
Outdoor fixtures need to operate in extreme cold. Therefore, Robe iSeries™ fixtures contain an innovative POLAR+™ technology - a special standby mode with low power consumption, in which the fixture's sensors and communications channels continue to function.
The L3™ Low Light Linearity System produces imperceptible, ultra-smooth fades to black.
The Robe Ethernet Access Portal allows to access internal data from a networked fixture, viewed as a web page, addressable via the fixtures network IP.
Cpulse™ is a PWM (Pulse Width Modulation) control system for luminaires that allows you to select and fine-tune the LED driving frequency, from either the fixture's onboard display or remotely via DMX. By frequency manipulation in a range from 800 Hz to 25 kH, you ensure no flicker will be visible on any camera system including the latest HD & UHD models, ready for 8K and 16K. This means our fixtures can be used with all the latest cameras types for TV, video and film applications.
The General Device Type Format creates a unified definition for exchange of data for the operation of intelligent luminaries, such as moving lights. The file format is human readable and developed using open source formats.
The innovative and exceptionally accurate Robe patented MAPS™ system provides stationary reset without calibration movement, as sensors calculate their absolute positions. This allows discreet resetting of fixtures during a performance and power cycling of luminaires within confined spaces.
The Robe EMS™ (Electronic Motion Stabiliser) system is a technology for precise Pan and Tilt movements, which reduces vibrations from audio outputs, truss movement and sprung or suspended floors.
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements in the luminaire.
Robe lighting’s Epass™ provides Ethernet in/out connections with a pass-through switch that sustains Ethernet integrity when the fixture has no power to automatically maintain network connectivity.
There is no need to be stuck with frosts supplied with the fixture! Robe’s MagFrost™ magnetic paddle system provides you with quickly exchangeable frosts, enabling you to select those most suitable for your production. 0.5°, 1°, 3.5°, 5°, 10°, 20° and 30° frosts are available.
Robe patented barndoors operate the same way as a conventional external 4-leaf barndoor. The quick, accurate internal 4Door™ barndoor system provides individual position control of the 4 “leafs” and +/- 90° rotation of the complete module assembly.
Found within Robe wash lights, our patented RotaScrim™ control feature allows the removal of distracting “hot spots” from the beam where the fixture position is non-perpendicular to the illuminated surface or piece of scenery. The graduated scrim filter smoothly removes eye-catching distractions and makes the projection smooth and even.
We are dedicated to equipping lighting designers with unparalleled tools that empower them to achieve their creative vision without constraints.
The highly advanced patented RAINS™ (Robe Automatic Ingress Protection System) technology not only prevents ingress. It actively manages a fixture's internal microclimate removing internal moisture build-up caused by constant heating and cooling to provide maximum protection for electronics, revolutionising how outdoor fixtures are managed and protected.
Technical Specification
