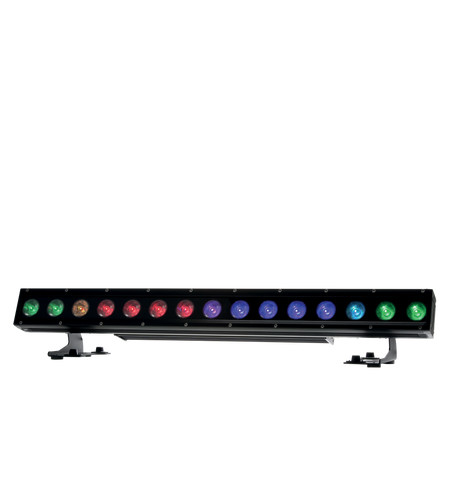

CycBar 15X™ is a lightweight static IP65 rated 1.000 mm linear bar which uses 15 equally spaced new generation of 30% brighter 15W RGBW multichip LEDs for enhanced 18-bit smooth colour mixing and linear dimming without RGB ’breakup’ or grey shadows.

A fixed 7.5° but redefinable beam angle offers optional diffusers, now with a new system of split filters allowing three different beam angles per entire CycBar and generating asymmetrical light output for use as a high-quality cyc light. Optional barn door can trim the beam if required. The advanced pixel control based driver software provides special features including a virtual colour wheel with pre-programmed colours and a set of true whites with CTO Tungsten lamp emulation and more. The practical and highly readable small display provides a menu with personality settings plus DMX and RDM protocols.

The two combined feet / brackets can now be easily adjusted by sliding them in the profile at the back of bar to fit various different types of trusses without using any tools.

Light source

15x 15W RGBW LED multichips

Light output

5.920 lx @ 5 m / 5.041 lm

Zoom range

7.5° + optional diffusers

Effects

pixel control, colour rainbow effect, pre-programmed colours and whites

Innovations

DataSwatch™ – inbuilt virtual colour library

The DataSwatch™ inbuilt virtual colour library for Robe LED fixtures provides consistent colour rendering with commonly matched filter ranges, allowing for rapid and accurate programming.

Tungsten Emulation

When selected, the luminaire will mimic the colour temperature of a tungsten lamp as you lower the output to produce that classic warm glow.

L3™ – Low Light Linearity System

The L3™ Low Light Linearity System produces imperceptible, ultra-smooth fades to black.

GDTF – General Device Type Format

The General Device Type Format creates a unified definition for exchange of data for the operation of intelligent luminaries, such as moving lights. The file format is human readable and developed using open source formats.

Accessories

Technical Specification

Expand AllDownload PDFCollapse All

Source

Light source type: 15x 15W RGBW LED multichips

LED life expectancy: min. 60 000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

LED colour variants: RGBW

Optical system

Dynamic Effects and Features

Variable CTO: 0-100%

Virtual Colour Wheel: With 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)

Tungsten lamp effect at whites: 2.700 K and 3.200 K (red shift and thermal delay during dimming)

Colour rainbow effect with variable speed

Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction

Strobe effect: variable speed (max. 20 flashes per second)

Pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0-100%

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Control and programming

Thermal specification

Electrical specification and connections

Approvals

Mechanical specification

Rigging

Included items

Optional accessories

Diffusion filter:

35° x 70° 10980247
10° x 30° 10980248
70° x 35° 10980249
30° x 10° 10980250
50° 10980251
32° 10980252
CycLight frame set 10980422

Gel frame: 10980269

Barndoor: 10980421

Doughty Trigger Clamp: 17030386

Safety wire 36 kg: 99011963

Mains Cable powerCON TRUE1 In/Schuko, 2m, Indoor: 13052405

Mains Cable powerCON TRUE1 In/US, 2m, Indoor: 13052406

Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor: 13052439

Mains Cable powerCON TRUE1 In/CEE 16A, 2m, Indoor: 13052445

Mains Cable powerCON TRUE1 In/Open ended, 2m, Indoor: 13052407

Mains Cable powerCON TRUE1 In/open ended, 2m EU, outdoor: 13052276

Mains Cable powerCON TRUE1 In/open ended, 2m US, outdoor: 13052277

Daisy Chain powerCON TRUE1 In/Out, US, 2m, Outdoor: 13052280

Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Outdoor: 13052281

Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor: 13052440

Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor: 13052444

Daisy Chain powerCON TRUE1 In/Out, EU, 0,75m, Outdoor: 13052278

Daisy Chain powerCON TRUE1 In/Out, US, 0,75m, Outdoor: 13052279

Single Top Loader Case: 10120184

Quad Top Loader Case: 10120185
